Explain matplotlib rendering pipeline.

Description:

The Matplotlib rendering pipeline is the internal process that transforms your Python plotting code into a final visual output — whether that's a display window, a PNG image, or a vector graphic in a PDF. Understanding this pipeline helps you write more efficient and reliable code, debug rendering issues, and fine-tune your plots for interactivity, animation, or high-resolution export.Think of the pipeline as a 4-stage process, moving from high-level commands to low-level rendering:

1. User Code (API Layer):

● The process begins when you write high-level plotting commands using either:

   - pyplot API (e.g., plt.plot(x, y)): A state-based interface.
   - Object-Oriented (OO) API (e.g., fig, ax = plt.subplots()): More flexible for managing multiple plots or complex layouts.

● You define the Figure (the entire plot), Axes (the area where the data is plotted), and Artists (the visual components like lines, markers, and text).

● These commands build the internal Figure tree structure, but no graphical output is created yet.

2. Artist Layer:

● Everything you see on the plot (lines, text, axes, labels, etc.) is represented as an Artist object in Matplotlib.

● Examples of Artists include:

   - Line2D for lines and markers.
   - Text for titles, labels, and legends.
   - Patch for shapes like rectangles or polygons.
   - PathCollection for collections of paths (e.g., scatter plots).

● These Artists are stored in the Figure and Axes objects.

● At this stage, the plot exists only in memory, organized in a hierarchical structure, but hasn't been rendered yet.

3. Backend Layer (Renderer + Canvas):

● The Backend is responsible for taking the Artist objects and turning them into an actual visual display or file.

● The backend has two main components:

   - Renderer: The engine that converts Artist objects into drawing instructions (lines, fills, text, etc.). It handles different drawing methods depending on the backend.

Canvas: The surface where the drawing occurs. The Renderer uses the Canvas to execute the drawing commands.

● There are two types of backends:

Interactive Backends (e.g., TkAgg, QtAgg): These allow for real-time display of the plot in a GUI window for interaction (e.g., zooming, panning).
Non-Interactive Backends (e.g., Agg, PDF, SVG): These are used when saving the plot to a file format (e.g., PNG, PDF, or SVG).

● The backend is responsible for rendering the plot based on the Artist tree created in the previous step.

4. Output Layer (Display or Save):

● Once the backend has rendered the plot, the final output is either:

   - Displayed in an interactive window using plt.show().
   - Saved to a file using plt.savefig() (e.g., .png, .pdf, .svg, .jpg).

● The output is the final graphical image that can be displayed on the screen or used in publications, presentations, and reports.

Code Explanation:
fig, ax = plt.subplots(): Starts by defining the canvas and axes.
ax.plot(...): Adds line artist objects to the Axes.
ax.set_title(...): Adds text artist.
plt.show(): Invokes the backend to render and display the composed figure.


Program:

import matplotlib.pyplot as plt

fig, ax = plt.subplots()
ax.plot([1, 2, 3], [3, 2, 4])
ax.set_title("Rendering Pipeline Example")
plt.show()

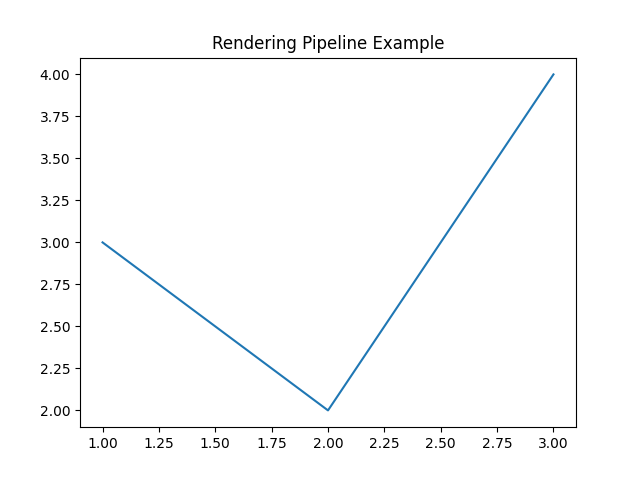

Output:
