How to profile and optimize rendering?
Description:
Profiling and optimizing the rendering of Matplotlib plots is crucial for improving performance, especially when working with large datasets, complex visualizations, or creating numerous plots in an automated pipeline. Matplotlib is a highly flexible and powerful plotting library, but like any tool, its performance can suffer under certain conditions. Profiling allows you to identify where bottlenecks are occurring in the plot generation process, and optimization techniques help you streamline the rendering process.
Profiling involves analyzing which parts of your plotting code consume the most time. By using profiling tools like Python's cProfile
module or Matplotlib's built-in timing functions, you can isolate slow sections of the code. For instance, plotting a large number of points or complex figures can lead to significant delays if not optimized.
Optimization focuses on improving rendering efficiency by:
-
Reducing the complexity of the plot (e.g., fewer data points or simplified visualizations).
-
Using faster backends like
Agg
for non-interactive tasks (e.g., saving to file). -
Reusing plot elements (e.g., updating the data of an existing plot instead of recreating it).
Profiling and optimizing rendering is particularly important in applications where real-time interactivity or batch plotting (e.g., in automated data pipelines) is required.
Code Explanation:
● np.linspace(...)
: Creates a large number of points for the x-axis.
● np.sin(...)
: Computes y-values as sine of x.
● ax.plot(..., rasterized=True)
: Enables rasterization to speed up rendering for complex plots.
● plt.savefig(...)
: Saves the optimized figure.
● plt.show()
: Displays the chart.
Program:
import matplotlib.pyplot as plt
import numpy as np
x = np.linspace(0, 10, 100000)
y = np.sin(x)
fig, ax = plt.subplots()
ax.plot(x, y, rasterized=True)
ax.set_title("Optimized Rendering with Rasterization")
plt.savefig("optimized_rendering.pdf")
plt.show()

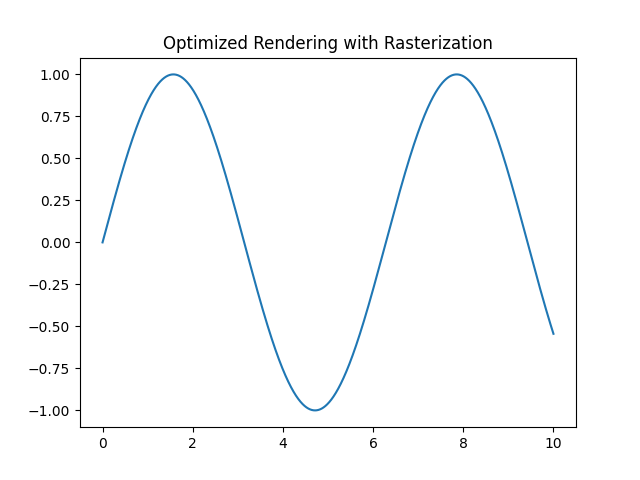

Output:
